As a professional outdoor LED supplier, we are often asked two core questions when receiving customers on a daily basis: "What is the appropriate brightness for outdoor LED screens? What is the waterproof level required for long-term stable use? ”Many customers fall into the misconception that "higher parameters are better", unaware that high brightness will increase electricity costs and accelerate screen aging, while high waterproof levels will increase costs and affect heat dissipation. In fact, the "sufficient standard" for brightness and waterproof level is based on the precise matching of LED core technology principles in outdoor use scenarios, which can ensure display effect and service life, control costs, and achieve maximum cost-effectiveness. Starting from technical principles, this article provides a detailed breakdown of the reasonable thresholds for both, helping customers avoid selection pitfalls.
Outdoor LED screens are exposed to natural environments for a long time, and brightness determines display clarity, while waterproof rating determines service life. The "sufficient standard" for both is not set out of thin air, but stems from the objective constraints of the outdoor environment and the logic of the LED screen's own lighting and sealing technology. Blindly pursuing high parameters will only be counterproductive.
1、 Brightness: It is sufficient to adapt to the environment, and the core depends on the lighting principle and scene requirements
The brightness of outdoor LED screens is measured in candela per square meter (cd/㎡), and its core luminous principle is that the semiconductor chip inside the LED bead undergoes electronic transitions when current is applied, releasing photons to form a luminous effect. The brightness is mainly determined by three factors: the power of the LED chip, packaging process, and driving current. These three factors work together to form the core formula for calculating brightness: brightness (cd/㎡)=LED luminous intensity (cd) × LED density (pieces/㎡) × luminous efficiency (%). Simply put, the higher the density of LED chips, the greater the chip power, and the more stable the driving current, the higher the overall brightness of the screen. However, at the same time, power consumption and screen body heating will also increase synchronously.
In outdoor scenes, the core of sufficient brightness is the ability to cover environmental light interference - the screen brightness needs to be 1.2-1.5 times higher than the ambient light intensity to ensure clear and visible display content without graying or blurring. The ambient light intensity varies greatly in different outdoor scenarios, and the corresponding brightness adaptation standards are also different: outdoor storefronts and small commercial billboards mainly use scattered light without strong direct sunlight, with an ambient light intensity of about 5000-10000 cd/㎡, and can adapt to 1500-2500 cd/㎡, which can display text patterns clearly and control power consumption; Medium sized display screens in squares and parks, some areas have direct sunlight, and the ambient light intensity is about 10000-30000 cd/㎡. It is necessary to choose 2500-4000 cd/㎡, which can effectively resist direct light interference and support automatic brightness adjustment, while also considering energy saving; Highways and large urban pillar screens are exposed to strong direct sunlight for a long time, with an ambient light intensity of up to 30000-80000 cd/㎡ and a viewing distance of 4000-6000 cd/㎡ to ensure clear visibility from a distance; In low light scenarios such as tunnels and underground entrances and exits, the ambient light is relatively dark, 1000-1500 cd/㎡ is sufficient to avoid visual contrast and fatigue caused by high brightness.
It should be noted that high brightness is not a good thing. Long term high brightness operation will accelerate the pearl fading of the lamp, and after 1-2 years, the brightness may decrease by more than 30%, shortening the service life of the screen body; At the same time, power consumption has surged. Taking a 100 ㎡ screen as an example, 4000 cd/㎡ consumes about 50 kWh more electricity per day than 2000 cd/㎡. Long term use of electricity costs are extremely high and may also cause light pollution, leading to complaints from surrounding areas.
2、 Waterproof level: sealing standard is sufficient, the core depends on the IP level and scene adaptation

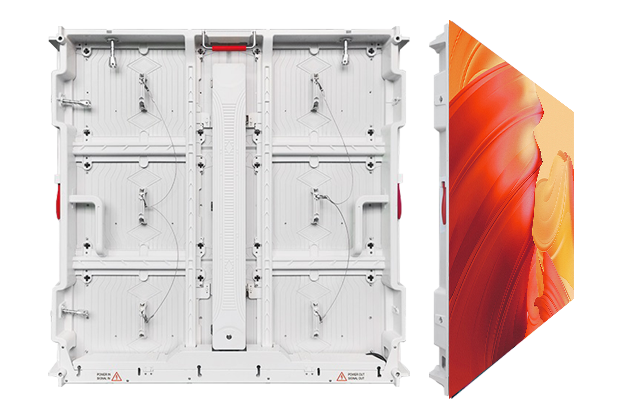

The waterproof level of outdoor LED screens is represented by IP (Ingress Protection) rating in the format of IPXX, where the first X represents the dustproof level and the second X represents the waterproof level (core focus on the second X). The larger the number, the stronger the waterproof ability. The core waterproof principle is to isolate the interior of the screen from the external water environment through a "three-layer sealing barrier" to prevent rainwater and moisture from entering and causing short circuits and component corrosion. The three-layer barriers are: shell sealing (aluminum alloy shell+waterproof rubber strip), lamp bead encapsulation (epoxy resin waterproof rubber coverage), and interface waterproofing (aviation waterproof joint+waterproof rubber).
The "sufficient" standard for waterproof rating is to withstand the risk of water intrusion in the corresponding scene, while also taking into account the heat dissipation of the screen body - excessive sealing can cause the screen body to be unable to dissipate heat, which can also damage components and shorten their lifespan. The risk of water intrusion varies in different outdoor scenarios, and there are clear standards for the appropriate waterproof level: the outdoor door screen has no long-term water accumulation, good obstruction, mainly facing rainwater spray and dew, IP65 is sufficient, which can completely resist dust intrusion and low-pressure spray in any direction; The square and park screen are unobstructed and may encounter rainstorm and short-term ponding, so IP66 is required to resist strong water spray and short-term ponding immersion; Expressway, large column screen, long-term exposure to the outdoors, facing rainstorm, gale and other severe weather, require IP67, and can be immersed in 1m deep water for 30 minutes without water ingress; Seaside, rainy and foggy areas, in addition to rainwater, also have salt spray corrosion, requiring IP67+anti salt spray treatment to avoid component corrosion.
Many customers blindly pursue IP68 waterproof rating (which can be soaked in water for a long time), but in fact, most outdoor scenes do not require such high standards. IP68 requires thicker sealing layers and more complex processes, which not only significantly increases procurement costs, but also leads to poor heat dissipation of the screen body, which in turn affects the stability of the screen body.
In summary, the selection of outdoor LED screen brightness and waterproof level is based on the principle of "adapting to the scene and being sufficient". As a professional outdoor LED supplier, we always recommend our customers to make reasonable selections based on their own installation scenarios and the principles of light emission and sealing. We do not blindly pursue high waste costs, nor do we lower standards that affect usage, truly achieving a balance between display effect, service life, and cost.
