Product Features

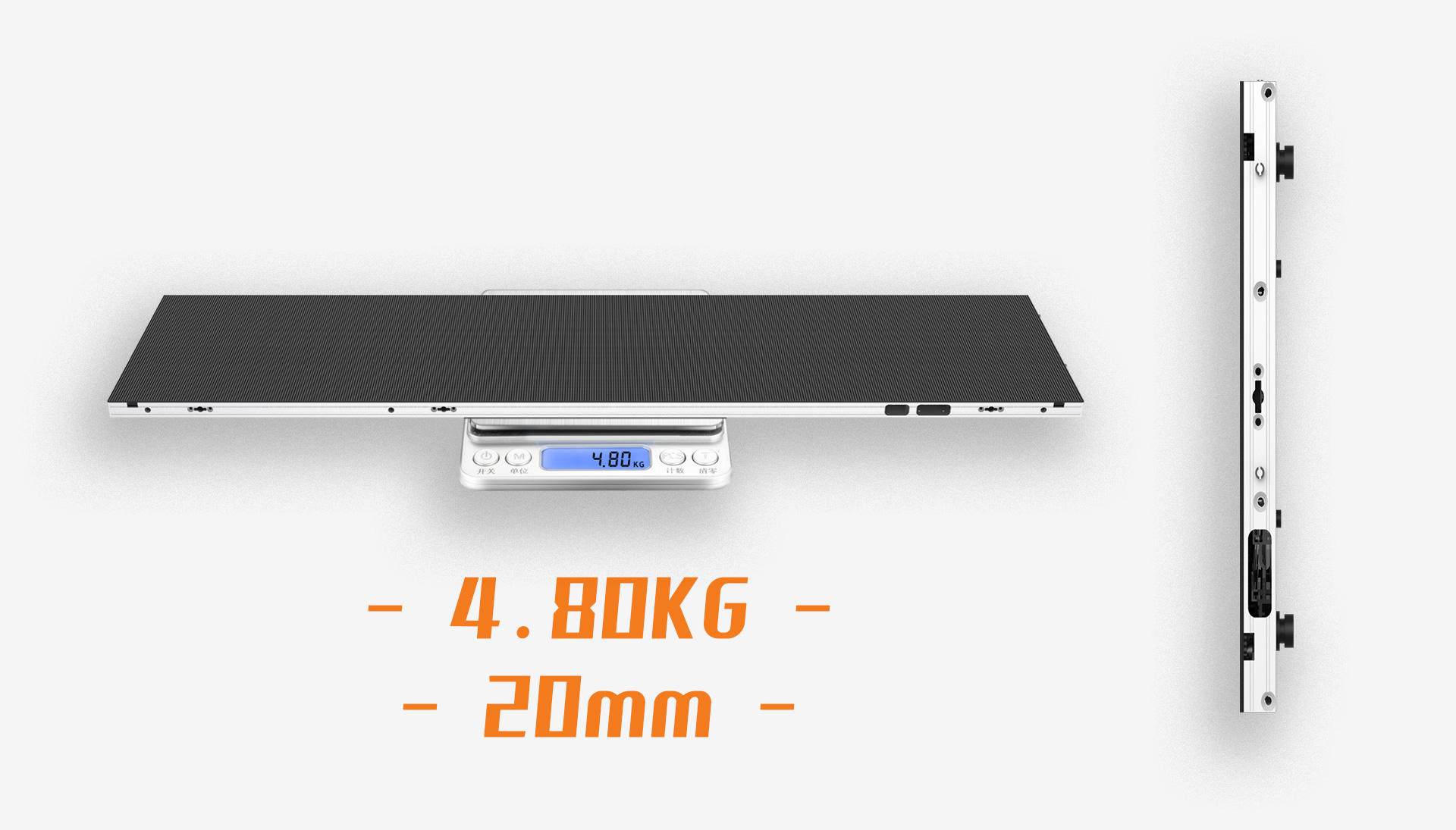

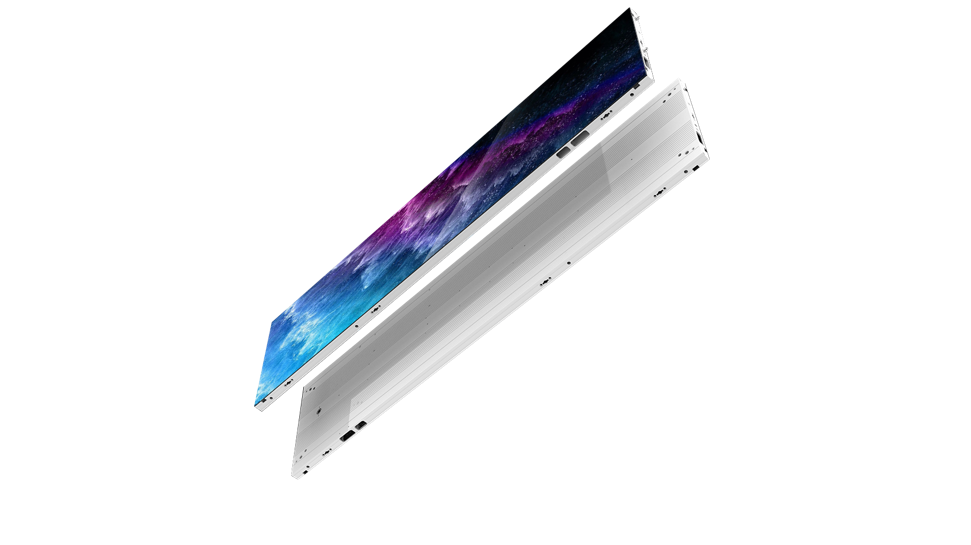

Ultra-Light + Ultra-Slim
Boasting lightweight, corrosion resistance, high precision, excellent flatness, resistance to deformation, and efficient heat dissipation, our aluminium profile structure surpasses sheet metal cabinets in strength and durability. The finishing process enhances screen splicing accuracy and uniformity. With a thickness of just 20mm and a weight of 19.2kg/m², installation is simplified, making it a more convenient option.

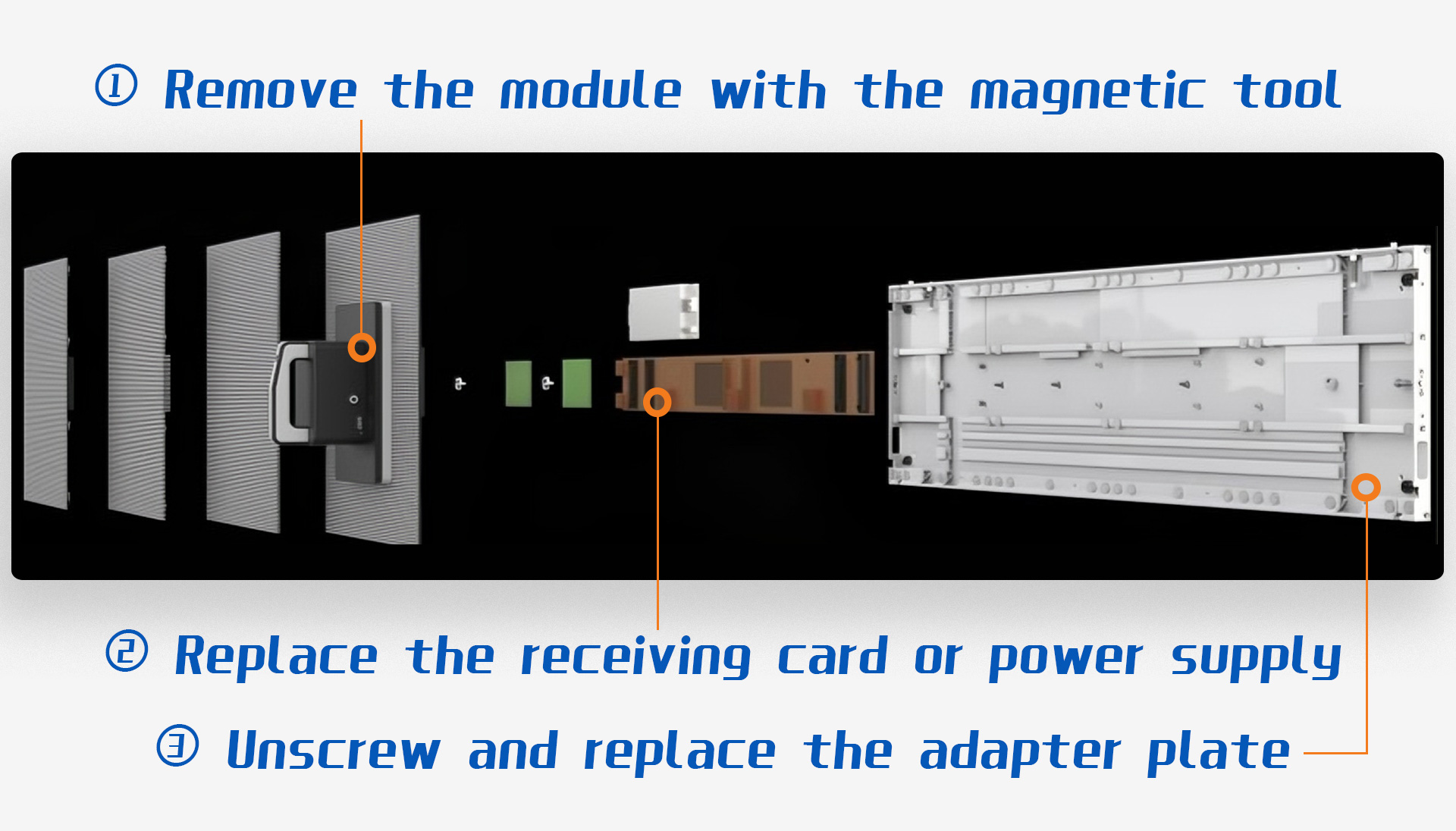

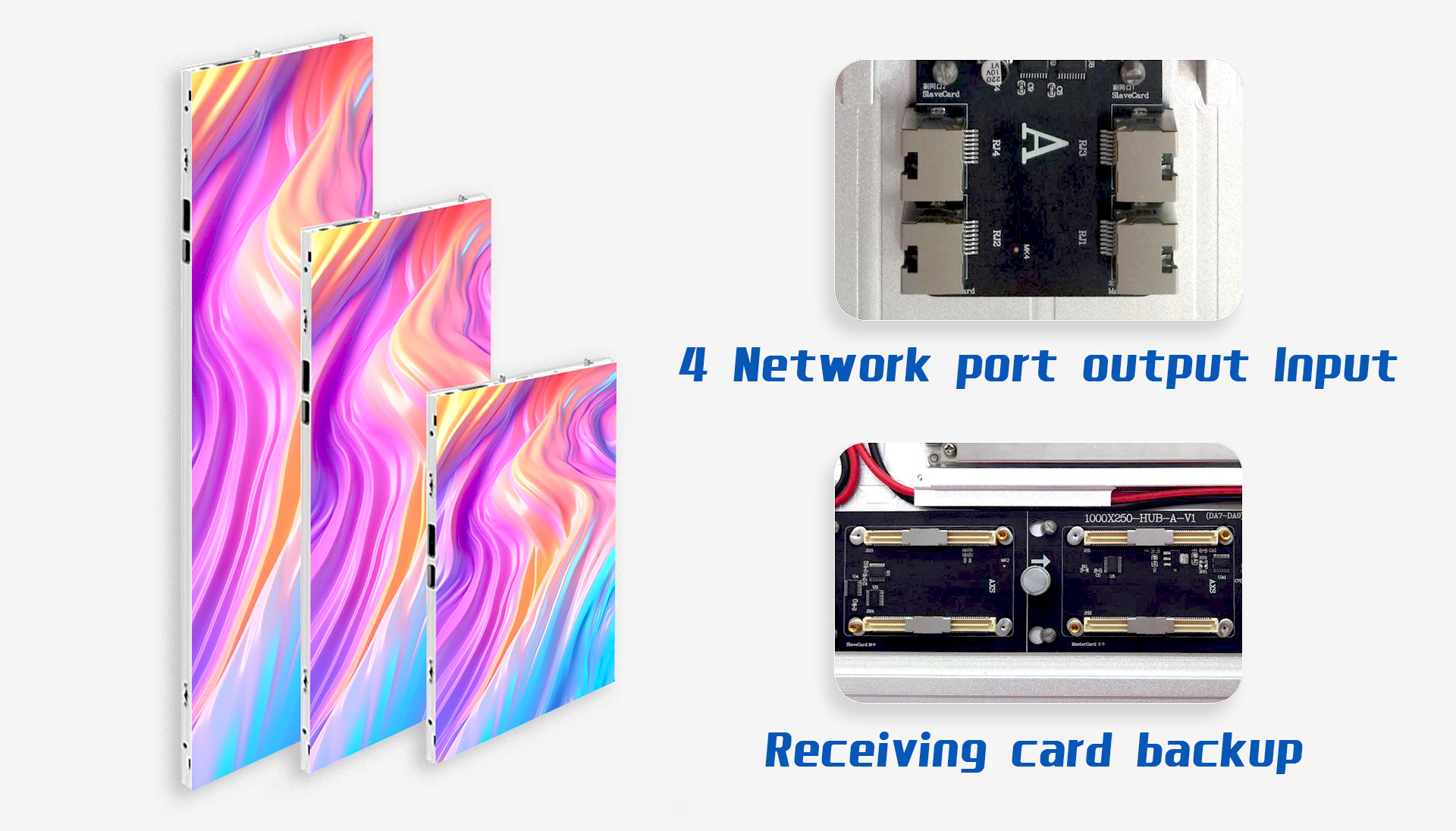

Easy Installation + Maintenance
Front maintenance design, all components support front-end maintenance, adapter plate removal without tools, saving time. Module auto adsorption, quick connection of the cabinet, can be installed against the wall without steel structure.
Light, Thin, and Transparent Structural Design
The main frame features an ultra-light pure carbon fiber frame combined with a hollow creative design, significantly reducing weight while enhancing transparency. It offers high tensile strength and an aesthetically pleasing structure.

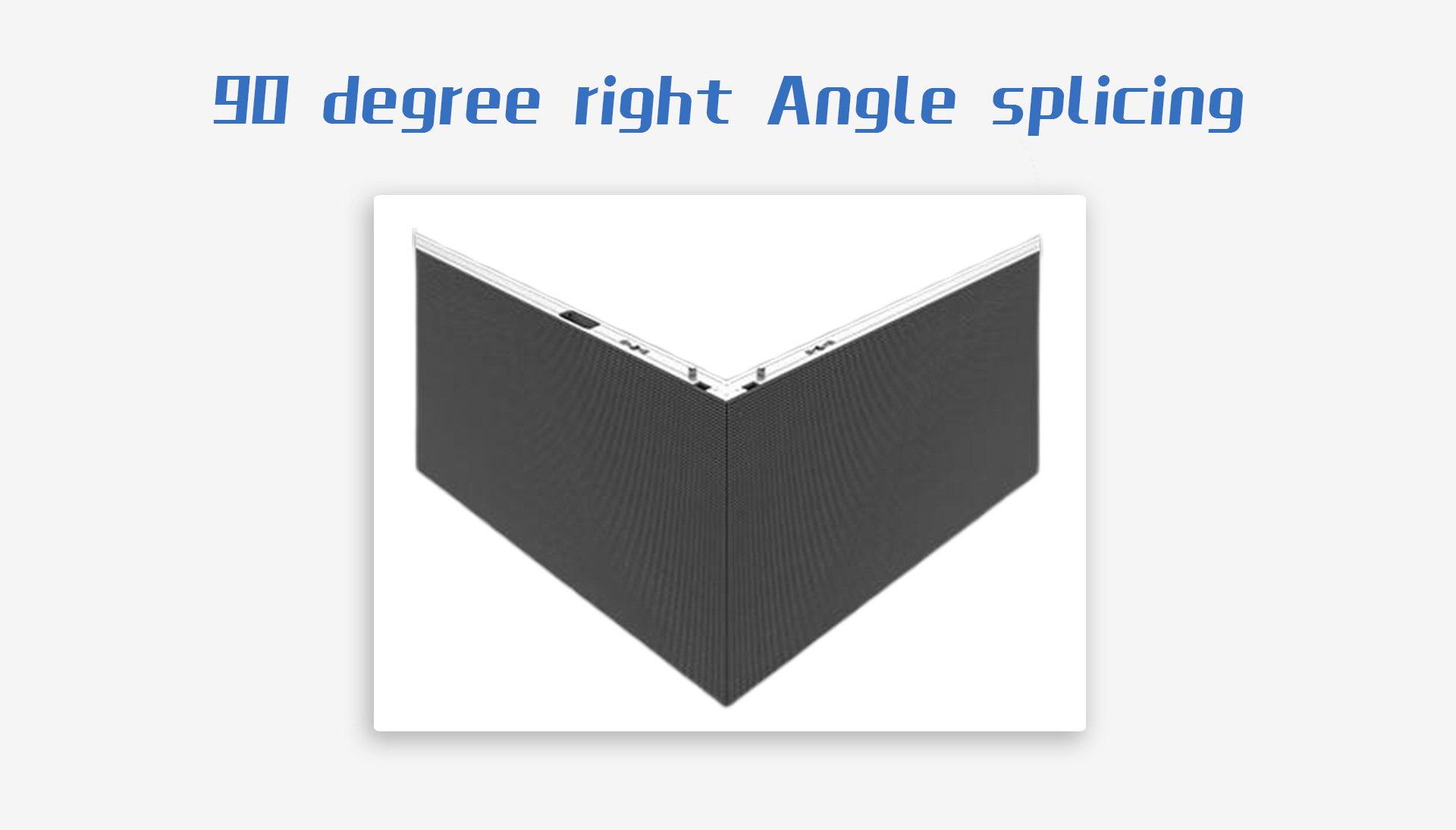

Flexible Splicing
It can realize 90 degree right Angle splicing, arc splicing, supporting lifting, wall installation, landing installation and a variety of installation methods.

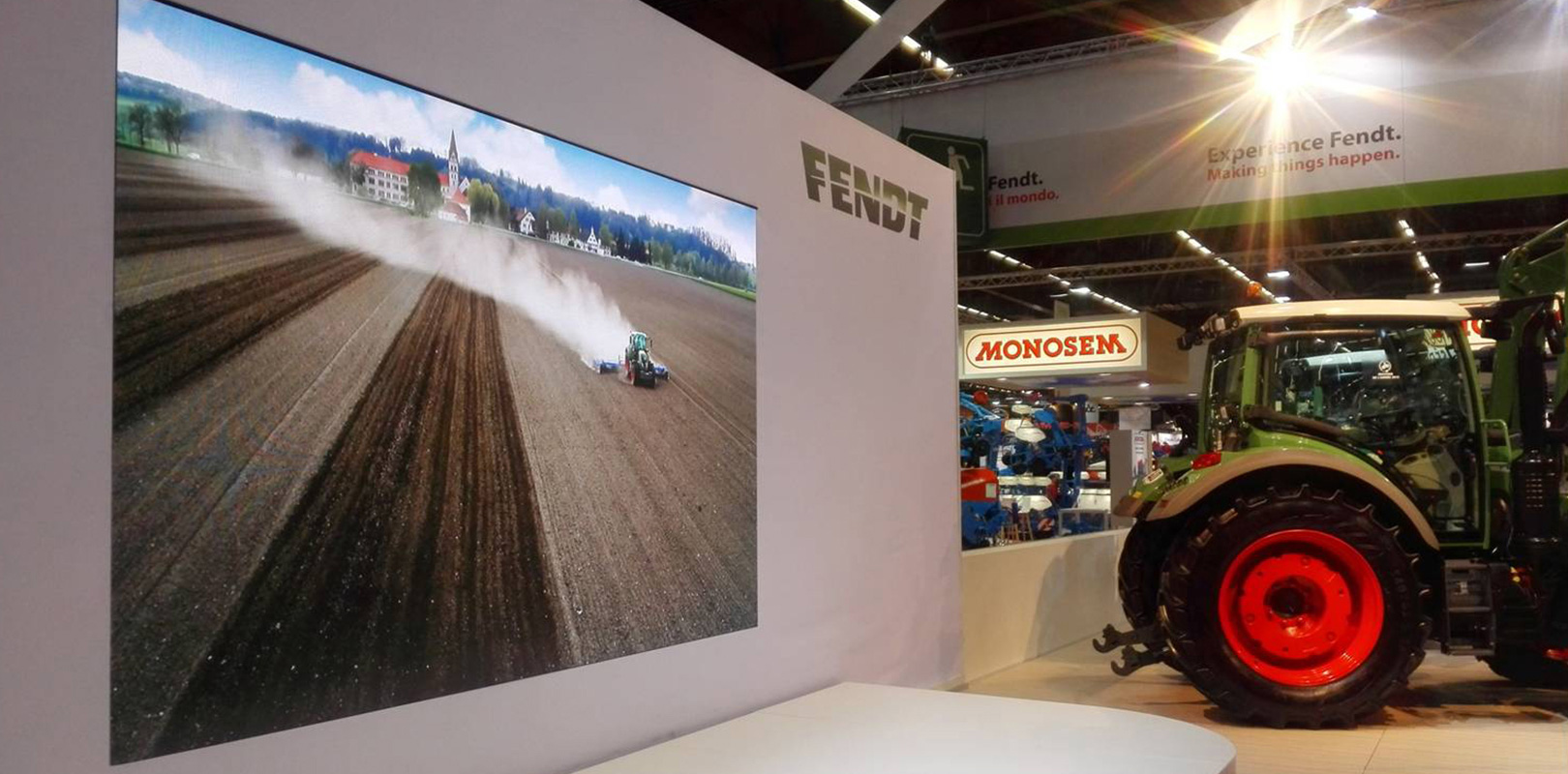

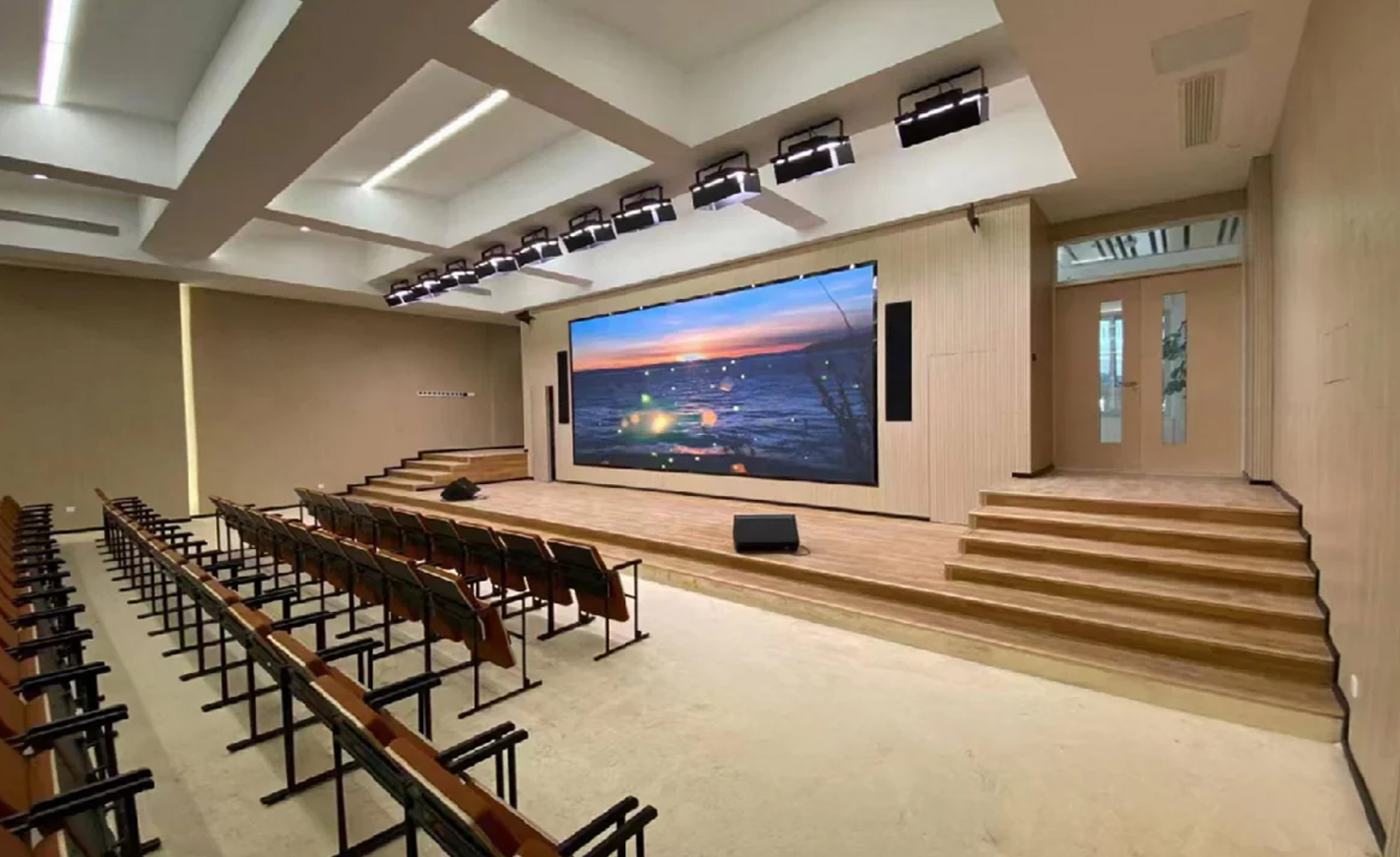

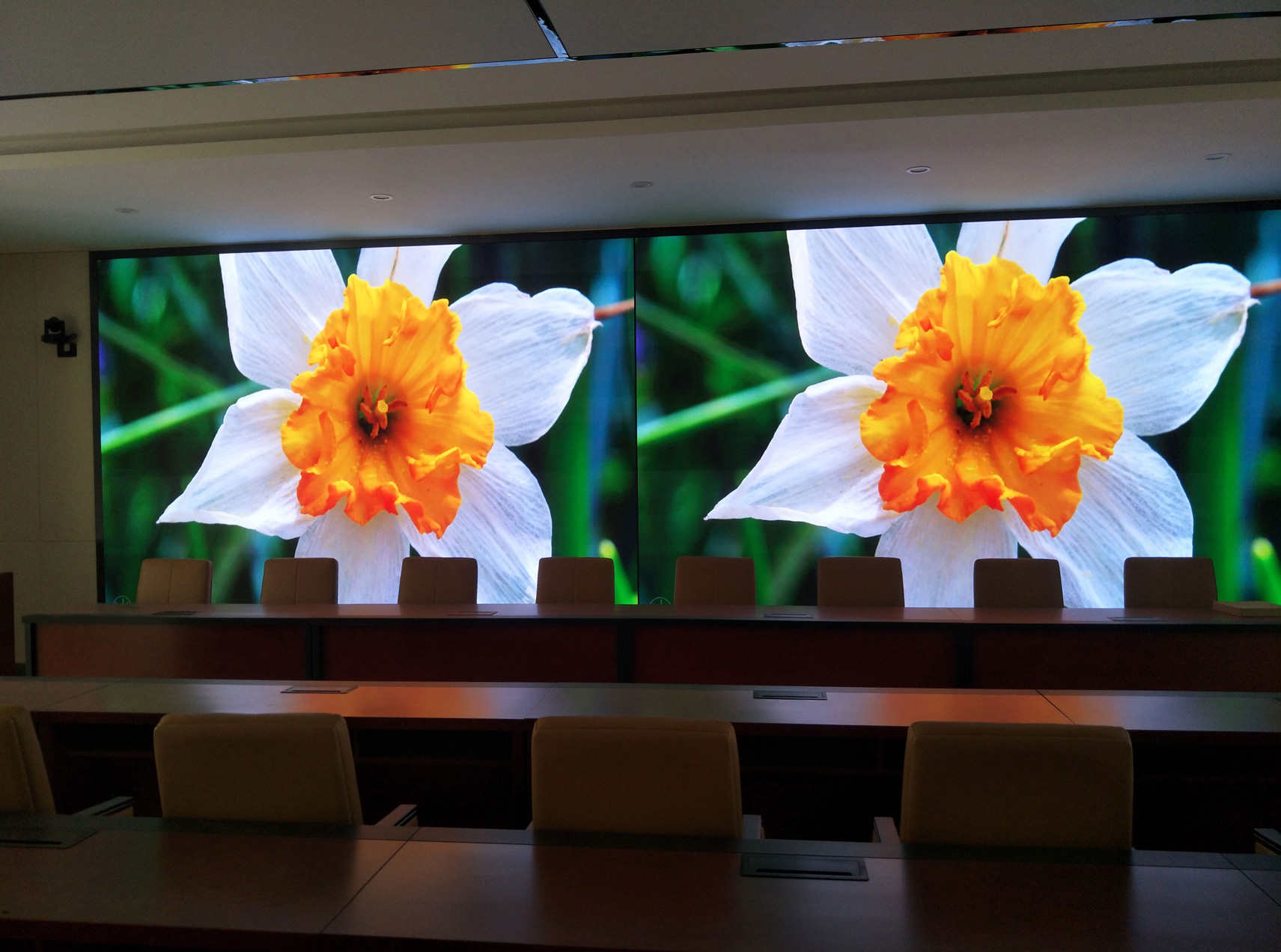

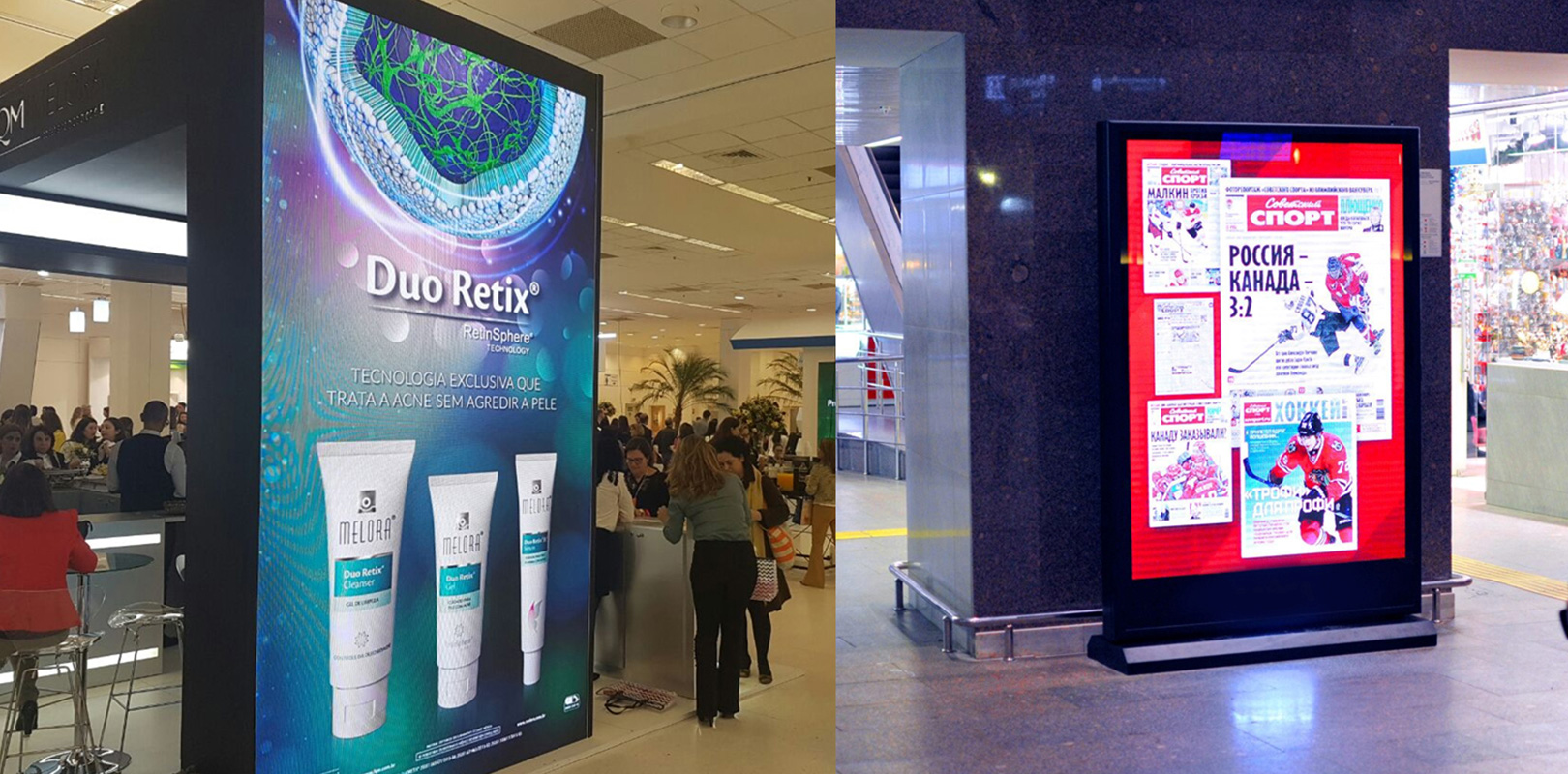

Case Showcase
SKP, Wuhan City, Hubei Province, China
Easyhome, China
Logistics, Kyoto, Japan
GOB Protected Display

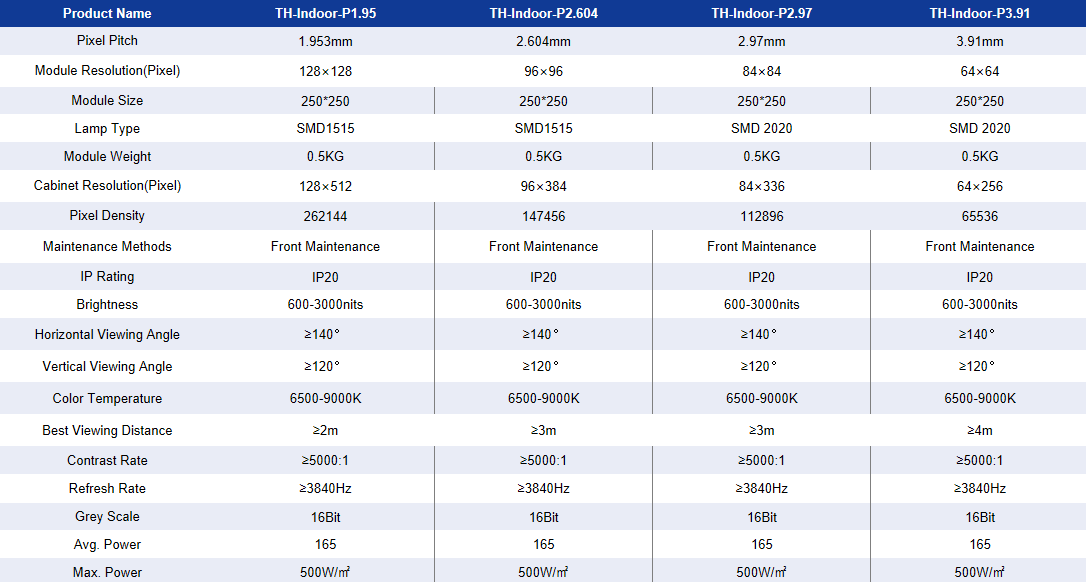

Product Specification
| Product Name | TH-P1.25 | TH-P1.56 | TH-P1.95 | TH-2.6 | TH-2.97 | TH-3.91 |
| Pixel Pitch | 1.25mm | 1.56mm | 1.953mm | 2.604mm | 2.97mm | 3.91mm |
| Pixel Composition | SMD1010 | SMD1212 | SMD1515 | SMD1515 | SMD1515 | SMD2020 |
| Module Size | 250×250mm | |||||
| Module Resolution (W×H) | 200×200 | 160×160 | 128×128 | 96×96 | 84×84 | 64×64 |
| Cabinet Density | 640,000dot/m² | 409,600dot/m² | 262,144dot/m² | 147,456dot/m² | 112,896dot/m² | 65,536dot/m² |
| Cabinet Size | 1000×250×20mm / 750×250×20mm / 500×250×20mm | |||||
| Cabinet Weight | 4.8Kg / 3.6Kg / 2.4Kg | |||||
| Cabinet Material | Profiles Aluminium | |||||
| IP Rate | IP20 | IP20 | IP20 | IP20 | IP20 | IP20 |
| Brightness | ≥600nits | ≥600nits | ≥600nits | ≥600nits | ≥600nits | ≥600nits |
| Color Temperature | 9000-10000K | 9000-10000K | 9000-10000K | 9000-10000K | 9000-10000K | 9000-10000K |
| Color Processor | 14Bit | 14Bit | 14Bit | 16Bit | 16Bit | 16Bit |
| Visual Angle (H/V) | 140°/120° | 140°/120° | 140°/120° | 140°/120° | 140°/120° | 140°/120° |
| Power Consumption Max. | 550W/㎡ | |||||
| Average Power Consumption | 275W/㎡ | |||||
| Scan | 1/64S | 1/40S | 1/32S | 1/32S | 1/28S | 1/16S |
| Refreshing Ratio | 3840Hz | 3840Hz | 3840Hz | 3840Hz | 3840Hz | 3840Hz |
| Maintenance Method | Front | Front | Front | Front | Front | Front |
