Product Features
Uniform Tapping
The fan-shaped module supports uniform tapping technology, ensuring that the displayed image is not distorted.

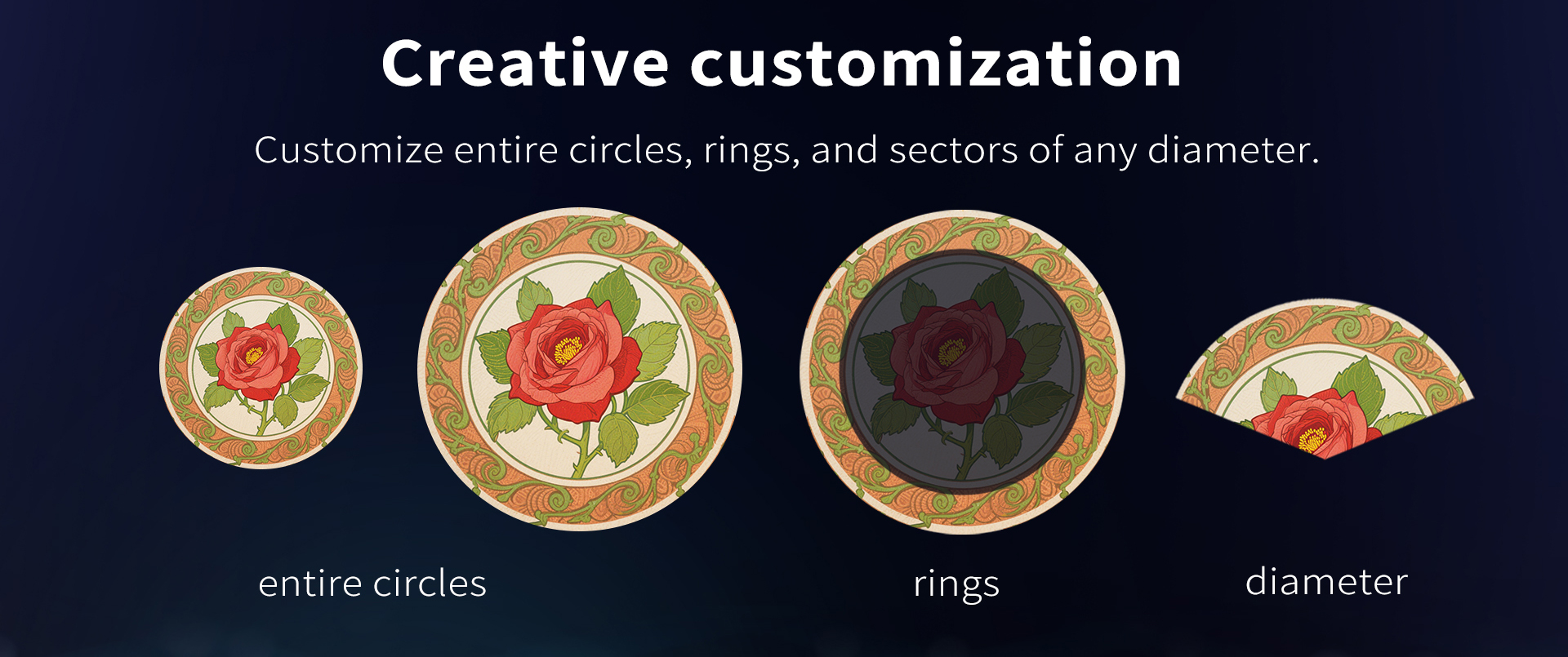

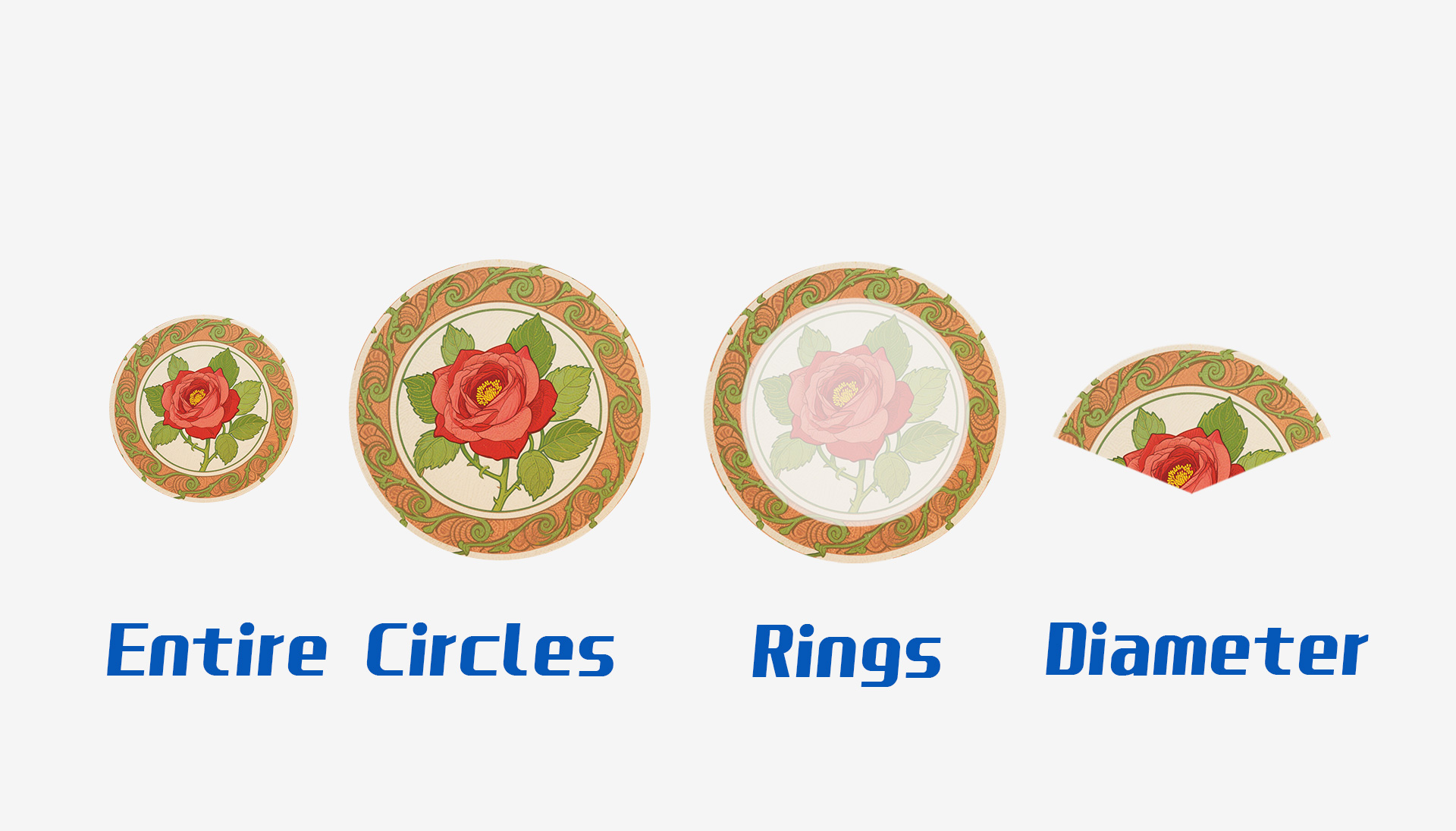

Creative customization
Customize entire circles, rings, and sectors of any diameter.
Installation and Maintenance
It adopts a magnetic installation design, which is simple and convenient for maintenance and supports front and rear maintenance.

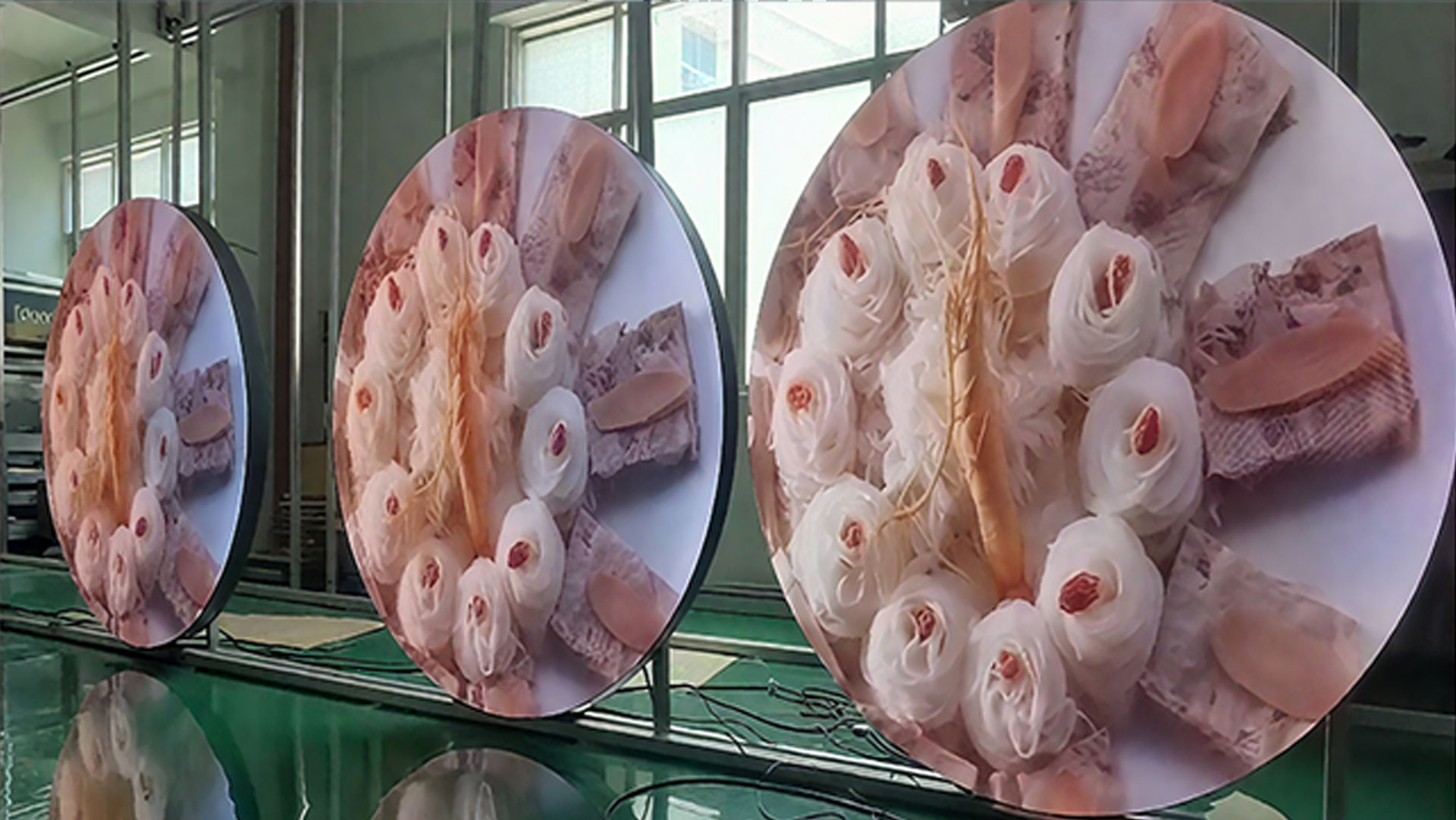

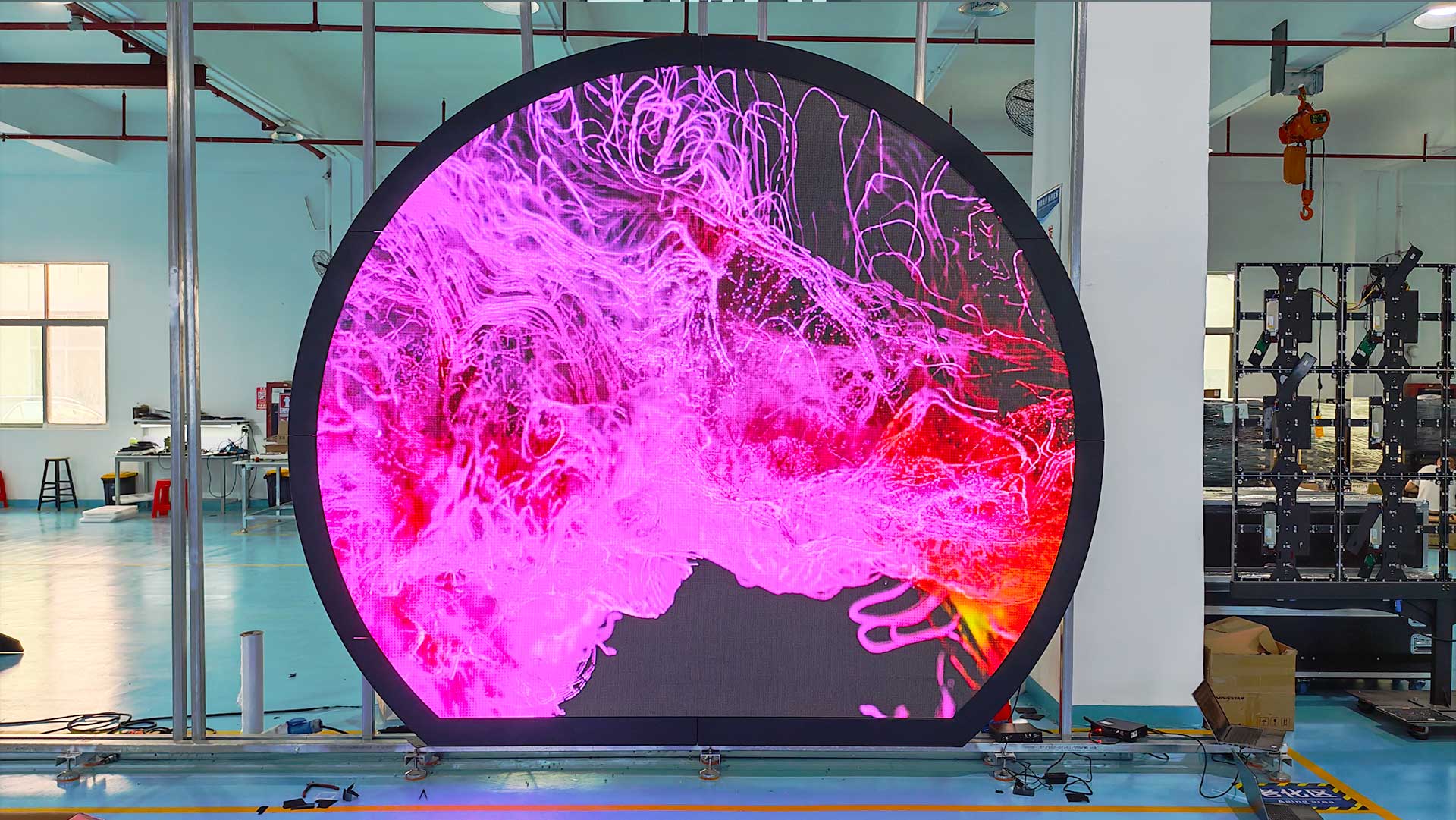

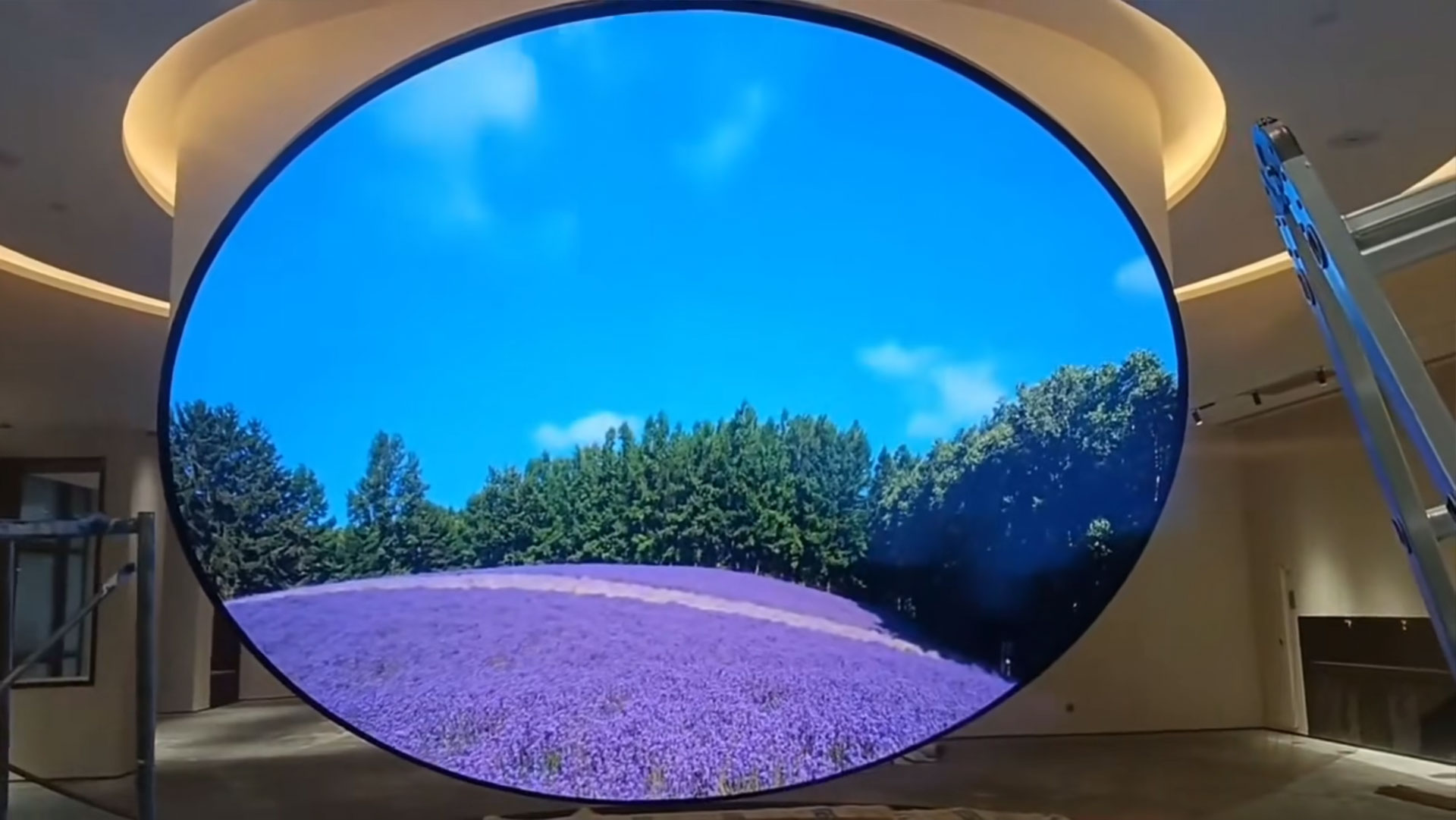

Case Showcase
Our Successful Projects

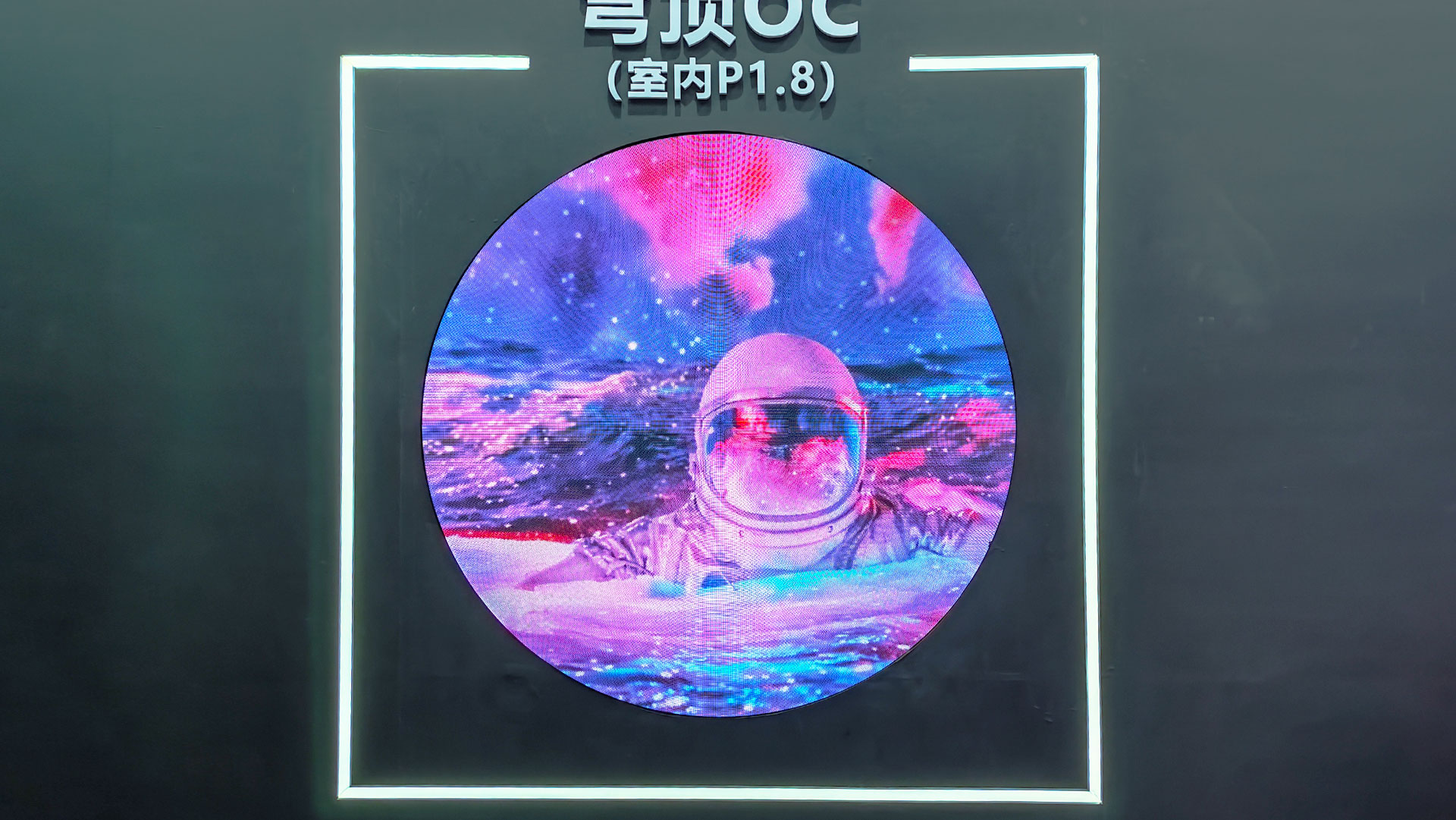

P1.8, Indoor, Shenzhen
P3, Outdoor, Spain
P1.8, Indoor, Guangzhou
P2, Indoor, Shenzhen

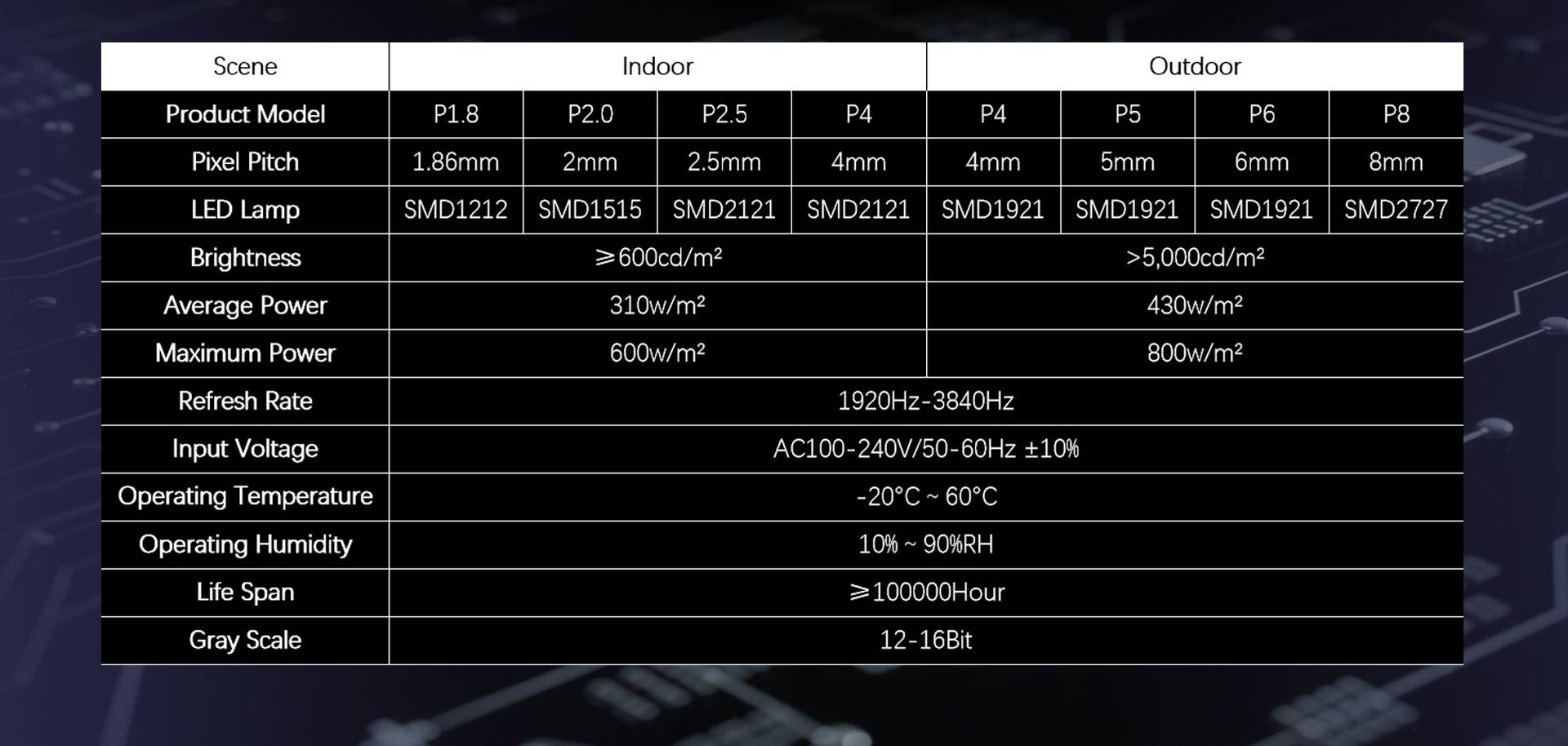

Product Specification
| Scene | Indoor | Outdoor | ||||||
| Product Model | P1.8 | P2.0 | P2.5 | P4 | P4 | P5 | P6 | P8 |
| Pixel Pitch | 1.86mm | 2mm | 2.5mm | 4mm | 4mm | 5mm | 6mm | 8mm |
| Spherical Size | Customized | |||||||
| LED Lamp | SMD1212 | SMD1515 | SMD2121 | SMD2121 | SMD1921 | SMD1921 | SMD1921 | SMD2727 |
| Brightness | ≥600cd/m² | >5,000cd/m² | ||||||
| Average Power | 310w/m² | 430w/m² | ||||||
| Maximum Power | 600w/m² | 800w/m² | ||||||
| IP Rating | IP30 | IP65 | ||||||
| Refresh Rate | 1,920HZ-3,840HZ | |||||||
| Color Temperature | 9000~10000K | |||||||
| Contrast | 5000:1 | |||||||
| Input Voltage | AC100-240V/50-60Hz | |||||||
| Life Span | ≥100,000 Hours | |||||||
| Operating Temperature | -20°C～60°C | |||||||
| Operating Humidity | 10%～90% RH | |||||||
| Gray Scale | 12-16 Bit | |||||||
